Dark Class Boats

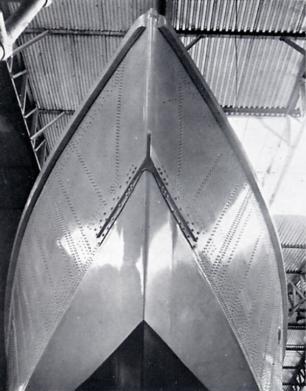

The bow of an all Aluminium 'Dark' showing the flush riveting etc
(believed to be T 201)
(Picture courtesy of Ted Else via Dave Abbot)

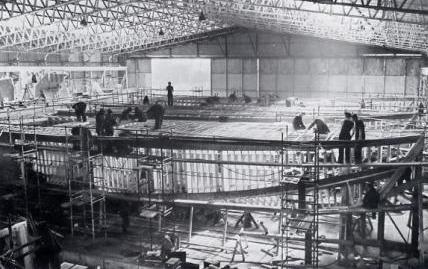

Dark's under construction at Saunders Roe Yard, Beaumaris
(Picture courtesy of Ted Else via Dave Abbot)

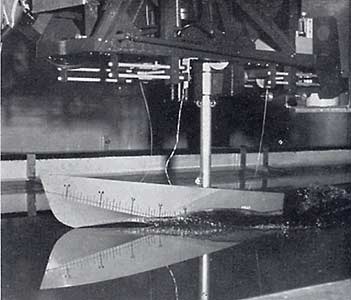

An early photo (above) of the final hull lines of the type "A" under test at the Admiralty test tank. This image is thought to have been taken very late '40s or early 1950.
(Photo courtesy of Ted Else via  Dave Abbot)

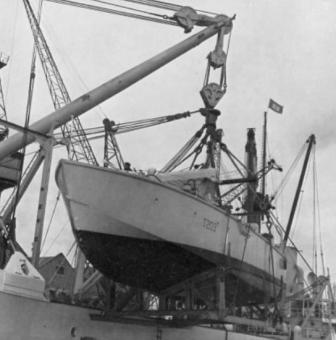

The Burmese T203 loading on the heavy lift ship SS Benwyvis at Southampton
for the long voyage to Rangoon, Burma (T201 having earlier been shipped aboard SS
Benalbanach at Weymouth) .
(Photo courtesy of Ted Else via  Dave Abbot)

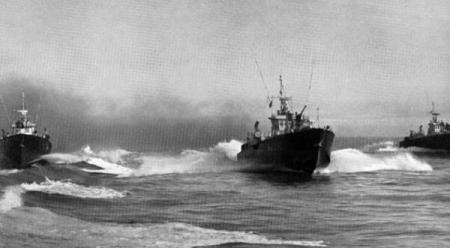

Three 'Darks' on an evening patrol. The latter is very evocative in a large format as the
exhaust haze from the squadron can be clearly seen, while the wash from the
photographers craft really does look 'wet'.
(Courtesy of Ted Else)

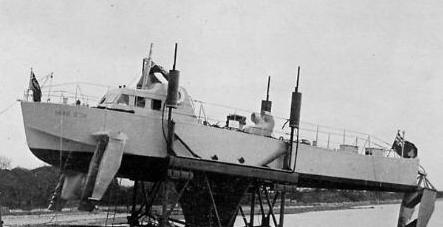

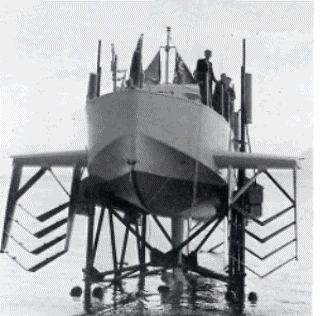

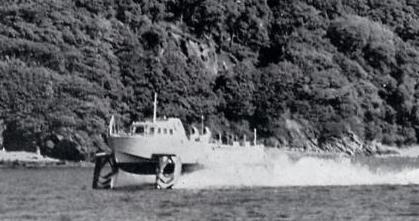

Below are 3 pictures of HMCN Bras d'Or, an experimental craft commisioned by the Royal Canadian Navy but has, as can be seen from her hull lines, an obvious lineage from the Admiralty Type A craft known as the 'Dark' class. She was launched by Mrs Hartley Zimmerman, wife of the Chairman of the Defence Research Board of Canada and apart from the obvious hyrdofoil attachments, she was powered by two Rolls Royce Marine 'Griffon' engines. (Courtesy of Ted Else)


HMCN Bras d'Or

HMCN Bras d'Or

HMCN Bras d'Or

All pictures below courtsey Paul Cantor.


P105


P1107


P1109


P111


P1112


P1114


P1116


P1118


Various torpedo boats
